Actiu Whass Draughtsman Gas Lift

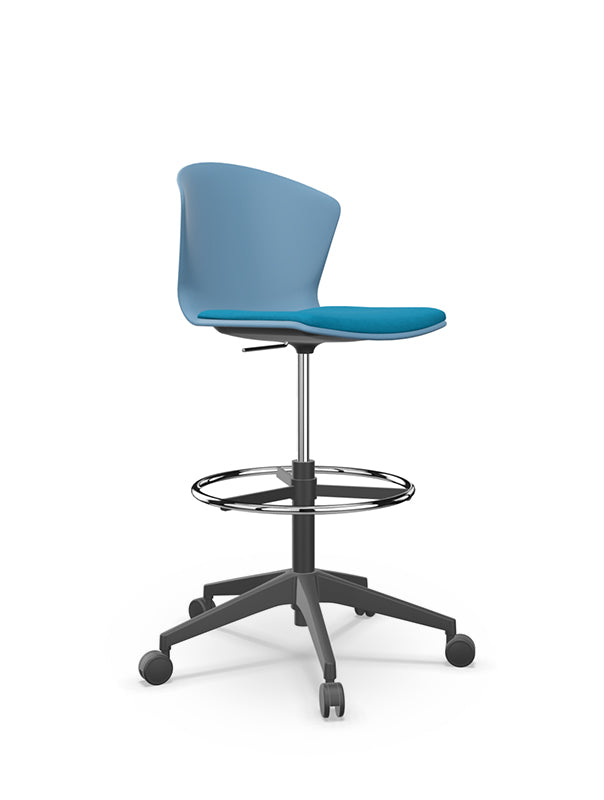

Whass Draughtsman Gas Lift

The Whass range has a relaxed yet tasteful design, available in a range of models, finishes and structures. Highly versatile, the products are light and easy to manoeuvre, thus being a great option for conference halls, training and educational purposes. The Draughtsman is the perfect addition to the Whass range. The supportive profile of this chair, coupled with the freedom and mobility of the castors makes for a multi-functional product. The wide selection of colours and finishes coupled with the gas lift feature of the Draughtsman allows for versatile use.

Regular price
Sale price
Regular price
Sold out
Unit price


  • Polypropylene (P.P) + 30% F.V. frame, 5 mm thick, with glass fibre.
  • Optional seat: Upholstered with an ergonomic cushion (115-125 kg/m3) in upholstered or PUR
  • Bottom structure: Bottom structure: Bottom frame of injected aluminium, which gives the chair greater precision, lightness and recyclability, covering the structure
  • Gas lift
  • Ø18 x 1.5mm chrome steel footrest ring, 1.5 mm thick.
  • 5-spoke rotating base 5-spoke rotating made of polyamide with fibreglass.
  • Inverted auto-brake castors. Optional polypropylene caps.
  • Total Height: 1065-1225 mm
  • Total Width: 675 mm
  • Total Depth: 675 mm
  • Seat Height: 685-845 mm or 704-864 mm with cushioned seat
  • Seat Width: 440 mm
  • Seat Depth: 400 mm


AENOR ECODESIGN Certificate AENOR ISO 9001 Certificate AENOR ISO 14001 Certificate The mark of responsible forestry LEED Platinum Certificate
